HOPPER/Awning 4800 SERIES Window System



The Hopper/Awning 4800 Series window system is designed, though not limited to, basement applications. This window system meets the ever -increasing demand for basement window egress requirements. The 4800 Series window system is available for both new construction and replacement/renovation applications. Its flexible design allows for different configurations, including: transom, casement, and high-end awning windows.




windowslogo

Compare

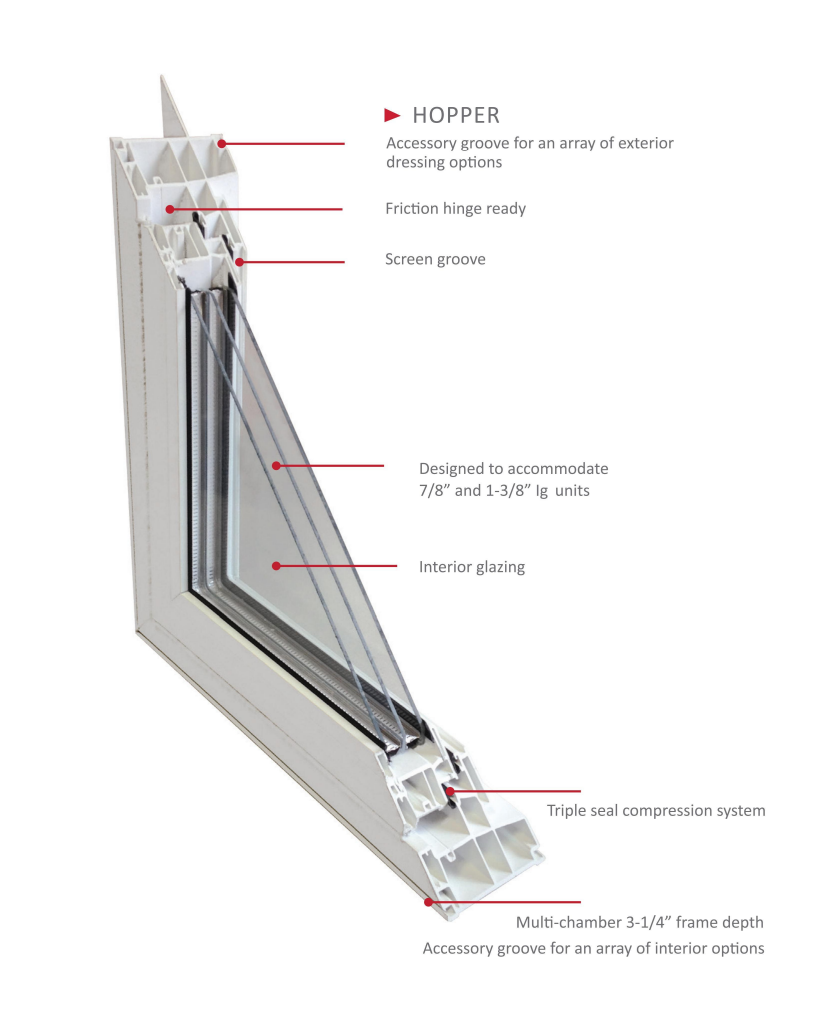

FEATURES AND BENEFITS

  • Hinged at top or bottom with traditional hopper hinges, or more opening options using friction hinges.
  • Standard hinge for economy, or Friction Hinge ready, for a more aesthetic look.
  • Designed to eliminate centre hinge bar (awning) to meet egress requirements.
  • Array of hinge mounting options.
  • 3-1/4” frame depth.
  • Integral nailing fin.
  • Multi-chambered profile design for be er R-value.
  • Interior glazing.
  • Designed to accommodate dual and triple IG unit from 7/8” to 1-3/8”.
  • Triple seal compression system for superior air and water tightness.
  • Durable, high quality gaskets engineered to retain their exibility and easy to replace in the event of accidental damage.
  • Suitable for basement application and other regular window application.
  • Complemented by a full range of external and internal accessories.
  • Made with 100% Virgin PVC powder compound – formulated to surpass AAMA requirements.



SKYREACH is a premier supplier of extruded PVC profiles for windows and patio doors manufacturers/ fabricators. With broad product offerings of window and patio door “open systems”, a fabricator can simply choose one or more systems suitable for its needs. Full support in supply chain, engineering and fabrication tooling is available. If customization is required, Skyreach also offers its “custom profile” approach, including supports in design, tooling and testing to ensure the project is completed from concept to completion.
